Description
Applications
Designed for installation on potable water lines to protect downstream equipment from malfunction or premature failure due to build-up of sediment or debris
Standard Compliance
- MIL-S 16293F Type 2
- Certified to NSF/ANSI 372* by IAPMO R&T
- (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)
Materials
- Main valve body: Cast Iron ASTM A 126 Class B
- Access cover: Cast Iron ASTM A 126 Class B
- Coatings: FDA Approved Epoxy Finish (FSC)
- Screens: Perforated Stainless Steel, 300 Series
Specifications

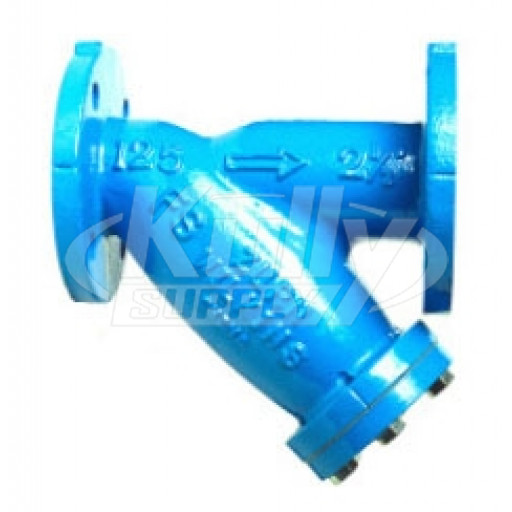

The Cast Iron “Y” type strainer shall be certified to NSF/ANSI 372, and in compliance with MIL-S-16293F Type 2. The main body and access cover shall be cast iron (ASTM A 126 Class B) and available with or without an FDA approved epoxy coating inside and out. The integral stainer screen shall be accessible for cleaning without removing the device from the line. The Cast Iron “Y” type strainer shall be a ZURN WILKINS Model FS or Model FSC.
